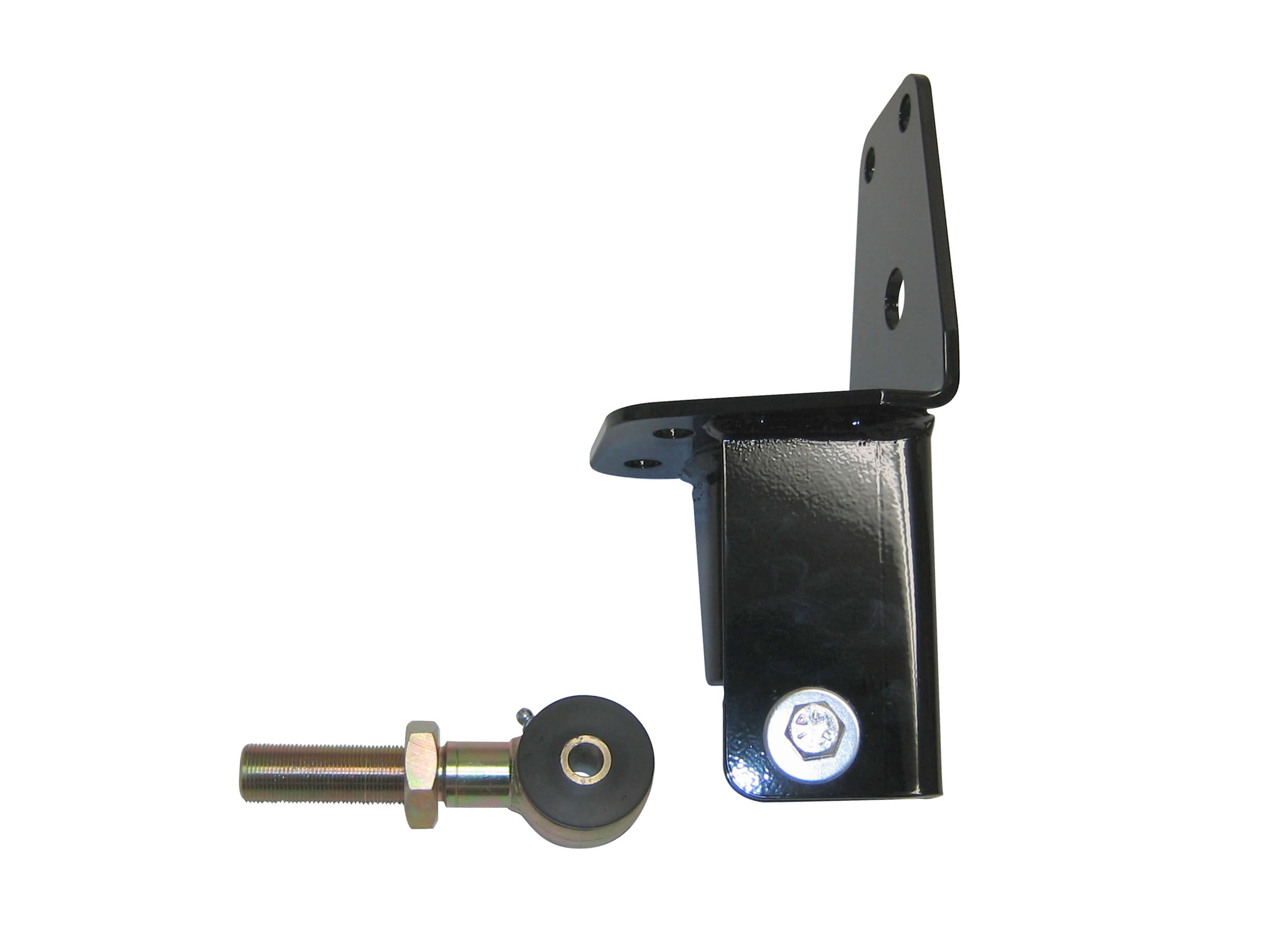

Rusty's HD Front Track Bar Frame Mount with 22mm Loop End (XJ,ZJ)
*This will only fit RC-TB122-UV's bought before 1-1-2019!!!

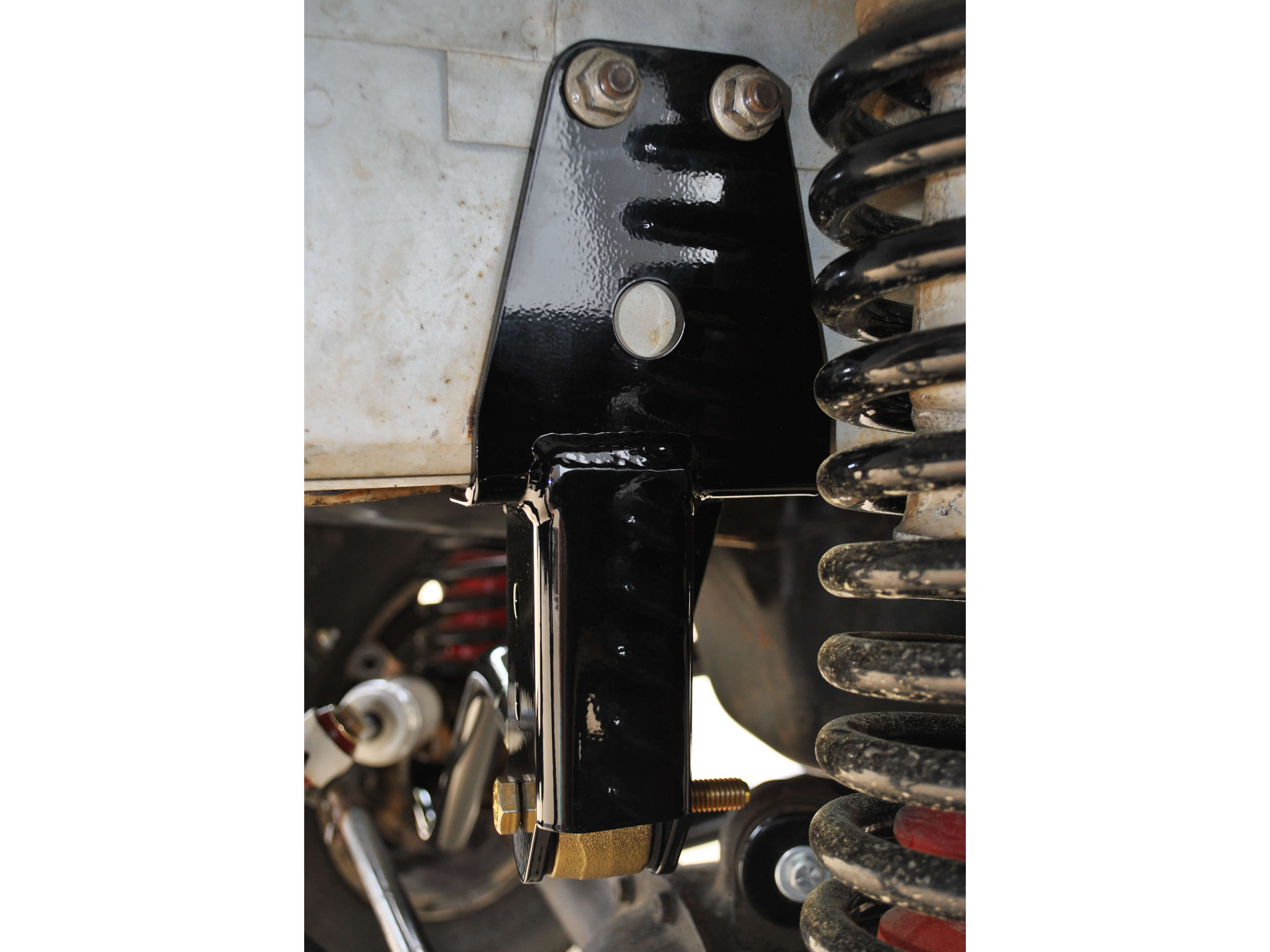

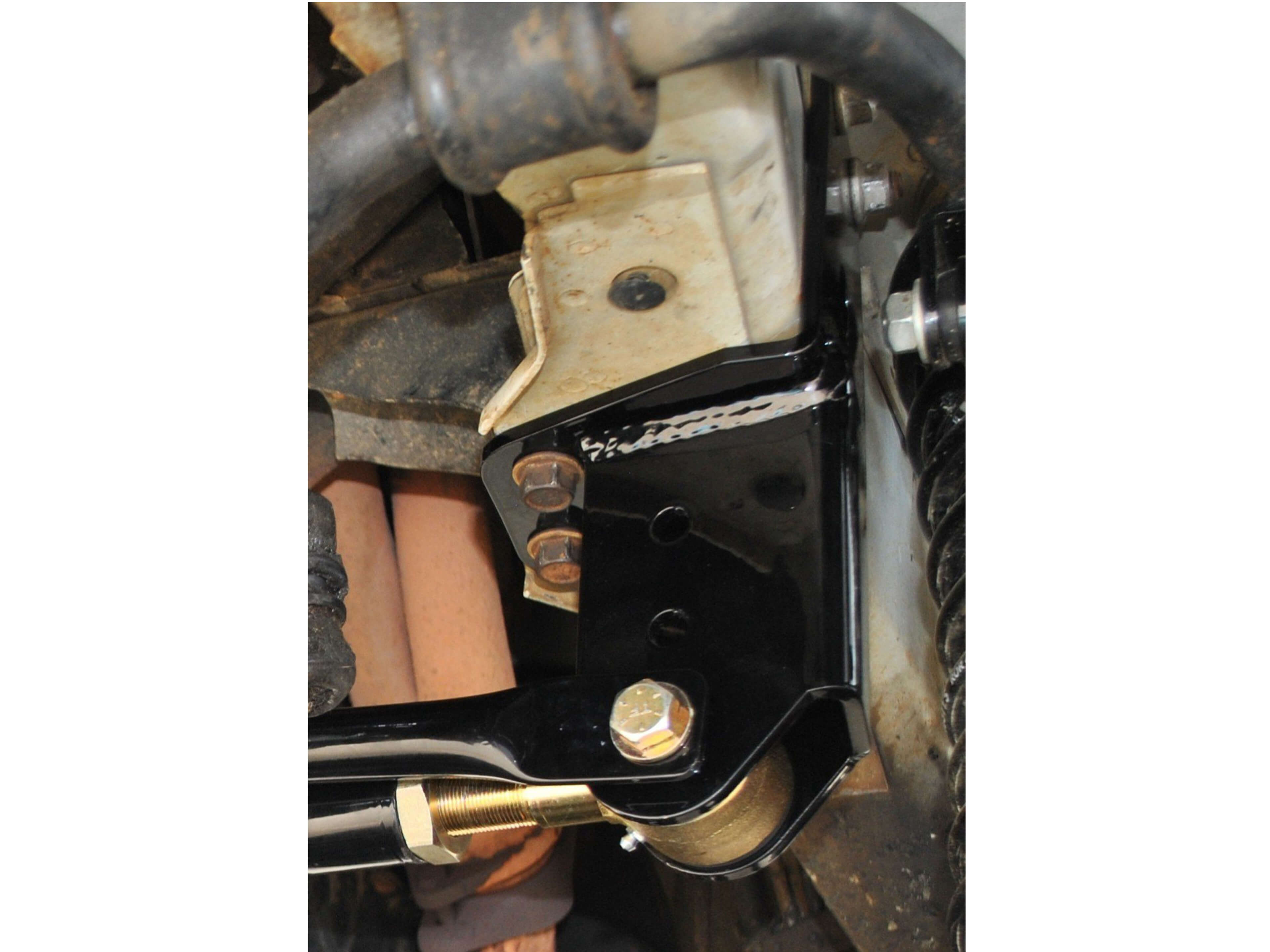

If you started off with Rusty’s RC-TB-122-UV Adjustable Track Bar and are now going to raise your vehicle higher or just want to beef it up, even more, the Rusty’s TB150 track bar mount comes complete with the thread-in loop and bushings to convert your existing RC-TB122-UV to the RC-TB200-UV. This conversion eliminates the tie rod end at the frame, which tends to wear out more quickly than conventional bushings, especially with taller lifts and hard use. Just remove the track bar from the frame, remove the tie rod end, and replace it with the supplied loop. Remove the 4 bolts that attach the factory frame mount to the frame, inspect all hardware, install the Rusty’s Frame Mount, torque the hardware, and re-install the track bar. You can also add Rusty’s RS-FRB1-XJ to make the assembly even stronger.
Before purchasing the RC-TB150-UV, measure the amount of exposed threads. If there is more than 1.25" of threads exposed you will need to purchase a longer track-bar. This is very important and will ensure the proper thread contact. Please measure and verify before ordering.
Will not work with RC-TB-111-UV track bar for stock non-lifted applications.
Part # SI-200 - Replacement adjustable track bar end for the TB-200 (22mm).
Part # R20769-12 - Replacement bushings (verify the part number of existing bushings before ordering)
