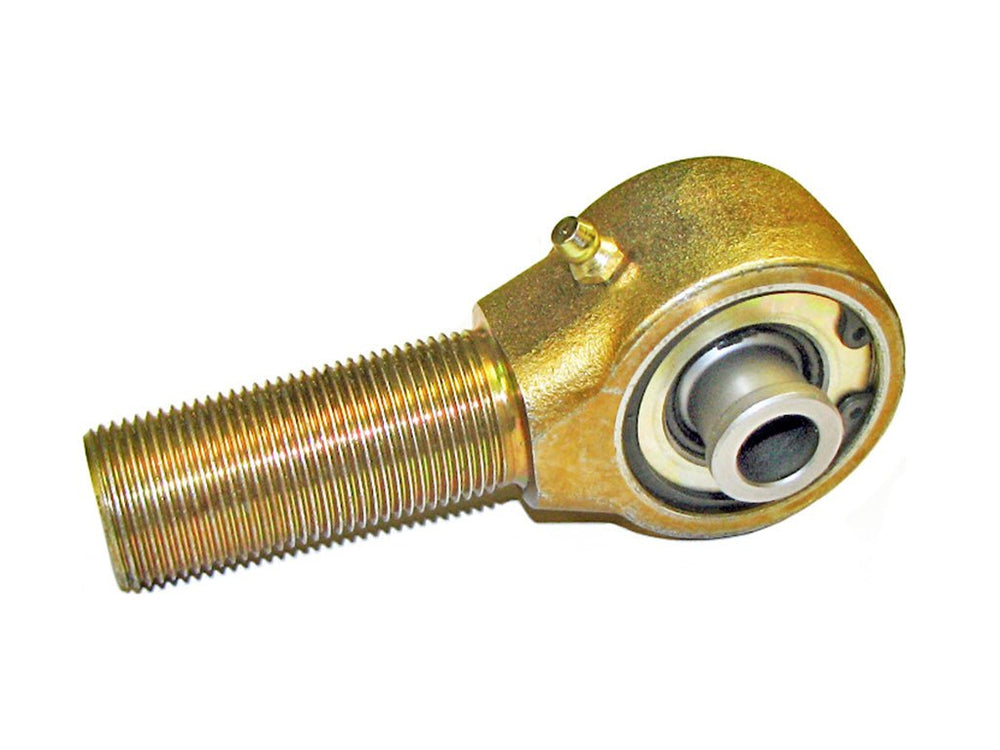

This narrow 2" forged Johnny Joint® is a male rod end that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a one piece high performance bushing, .625" thru hole, a 1.600" mounting width, 2-1/4" of 1"-14 left hand threads on the shank and is greasable through the outer shell.
Body Type |
Forged Steel (Threaded) |
Body Series |
2 inch OD, Narrow Body |
Body Width |
1.2 inches |
Thread Size |
1 inch, 14 TPI |
Thread Direction |
Left Hand |
Shank Length |
2 1/4 inch |
Mount Width |
1.600 inches |
Hole Diameter |
.625 inch (5/8) |
Misalignment |
22° Total |
Lubrication Method |
External zerk fitting located on joint body |
Body Finish |
Yellow zinc plating |
