RockJock Narrow 2" Forged Johnny Joint® 1" LH Thread (1.600" x .625" Ball)

$66.00

  • Brand: RockJock
  • Availability: In Stock
  • Part Number: CE-9112NL-14

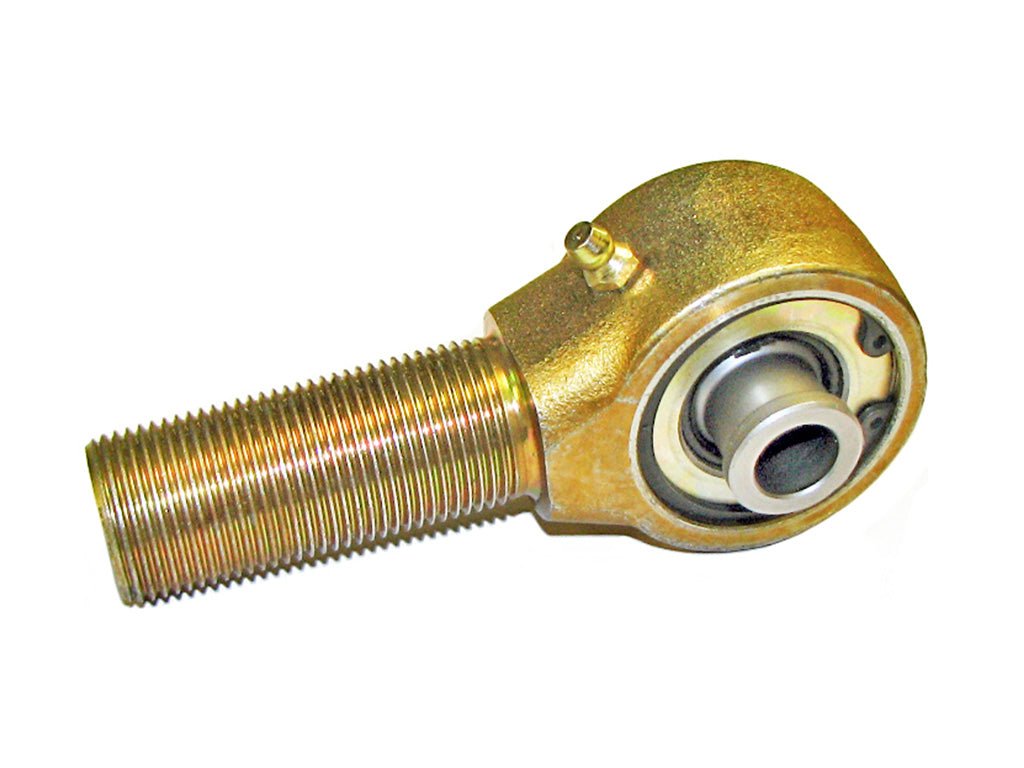

This narrow 2" forged Johnny Joint® is a male rod end that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a one piece high performance bushing, .625" thru hole, a 1.600" mounting width, 2-1/4" of 1"-14 left hand threads on the shank and is greasable through the outer shell.



Body Type Forged Steel (Threaded)
Body Series 2 inch OD, Narrow Body
Body Width 1.2 inches
Thread Size 1 inch, 14 TPI
Thread Direction Left Hand
Shank Length 2 1/4 inch
Mount Width 1.600 inches
Hole Diameter .625 inch (5/8)
Misalignment 22° Total
Lubrication Method External zerk fitting located on joint body
Body Finish Yellow zinc plating
