Genuine Spicer - Dana 30 - Left Hand Axle Shaft Assembly - TJ / XJ / YJ / ZJ


  • Brand: Dana Spicer
  • Availability: In Stock
  • Part Number: 75815-1X

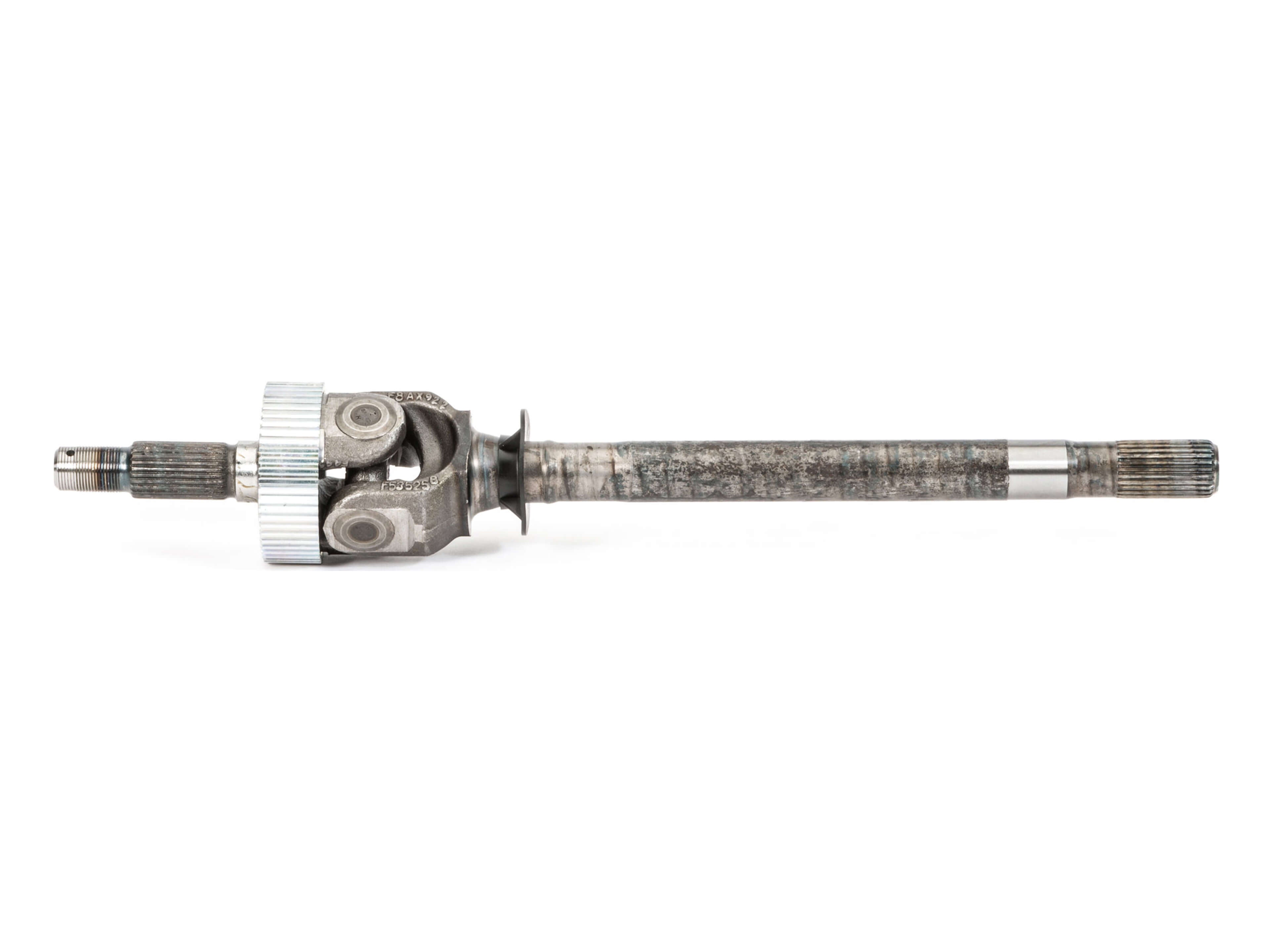

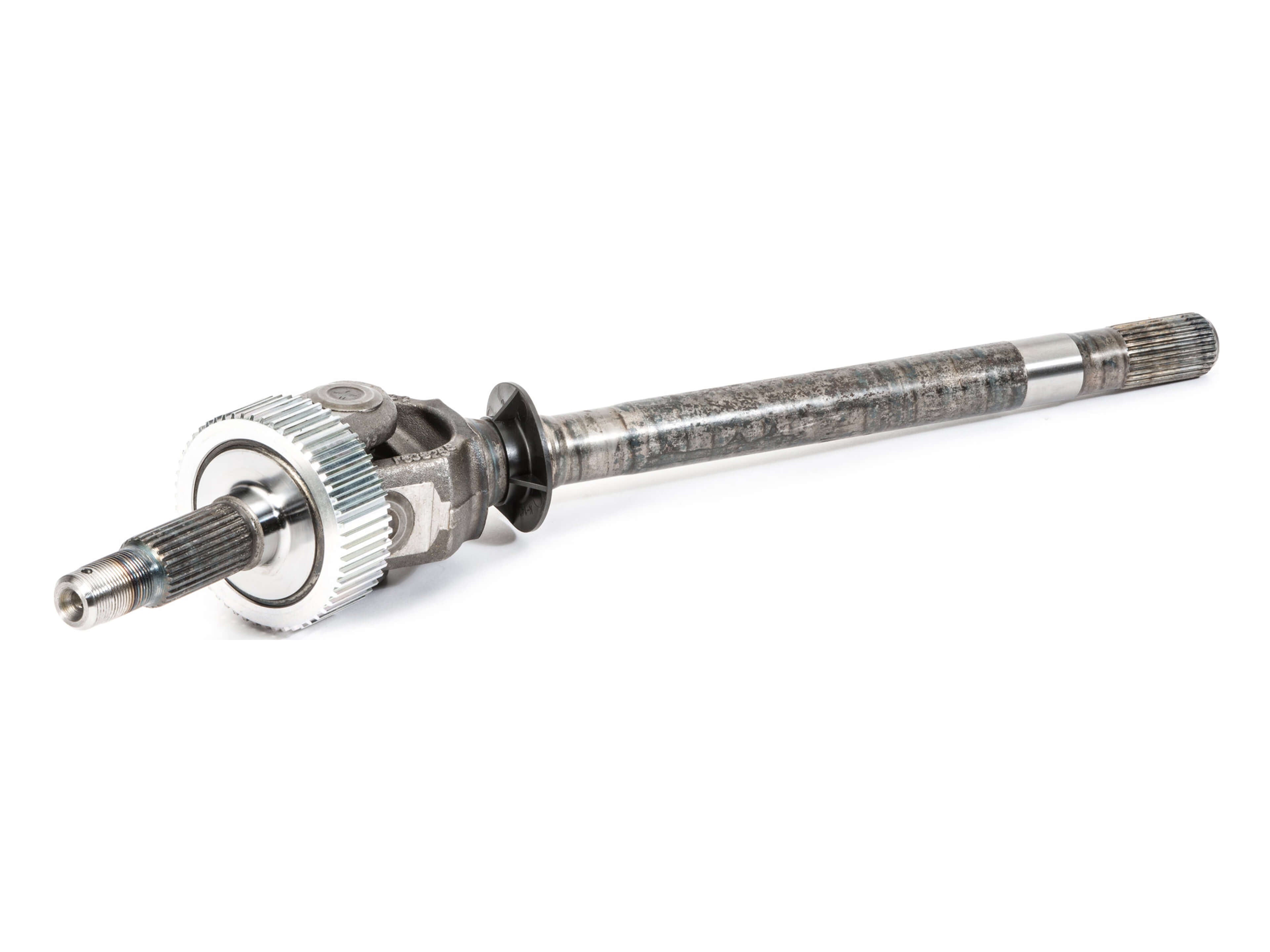

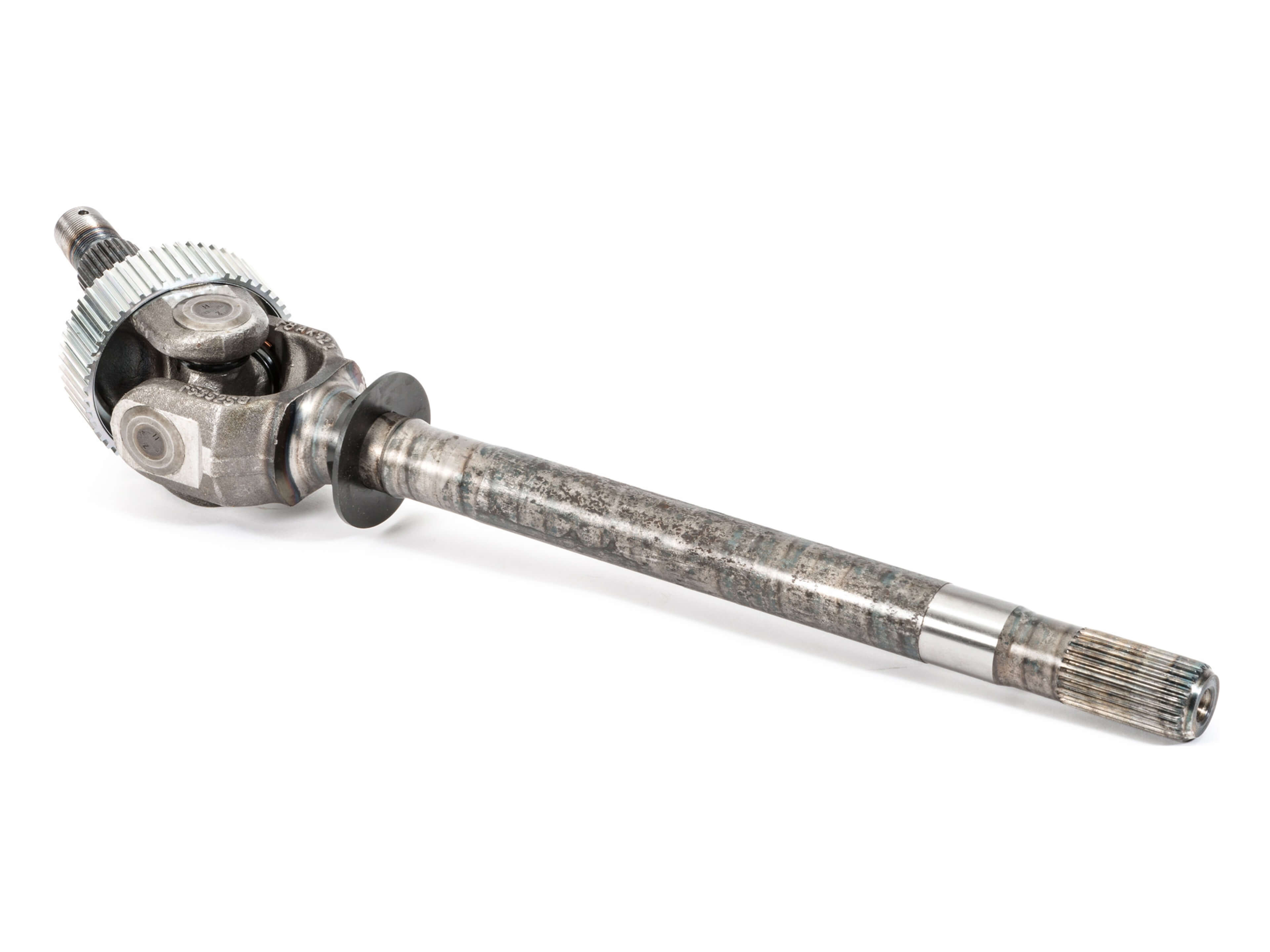

This is a complete axle shaft assembly for the Left Hand (driver or "short" side) axle shaft assembly. Comes complete with inner shaft, outer stub shaft, and axle joint. The inner shaft is 27 spline.

This assembly is a direct replacement for TJs, XJs, and YJs. This assembly is also a great upgrade for ZJs equipped with problematic CV-style front axle shafts.

Inner shaft 16.57"
Outer shaft :6.11"
Overall length: 22.68"

Brand Spicer
Material Steel
Length (IN) 22.680
Spline Count 27
ABS Sensor Ring Included Y
ABS Sensor Ring Installed Y
Axle Shaft Included Y
Axle Type Complete Assembly
Bearing Included N
Full-Floating Or Semi-Floating Semi-Floating
Inner Axle Included Y
Outer Axle Included Y
Quantity 1
Retainer Ring Included N
Seal Included Y
Seal Kit Included N
U-Joint Included Y
Wheel Bearing Included N
Wheel Bolt Prep Kit Included N
Wheel Nuts Included N
Wheel Studs Included N
Length (MM) 576.072
Package Type EACH
Package Qty 1
Weight 12.9 LB
