Description

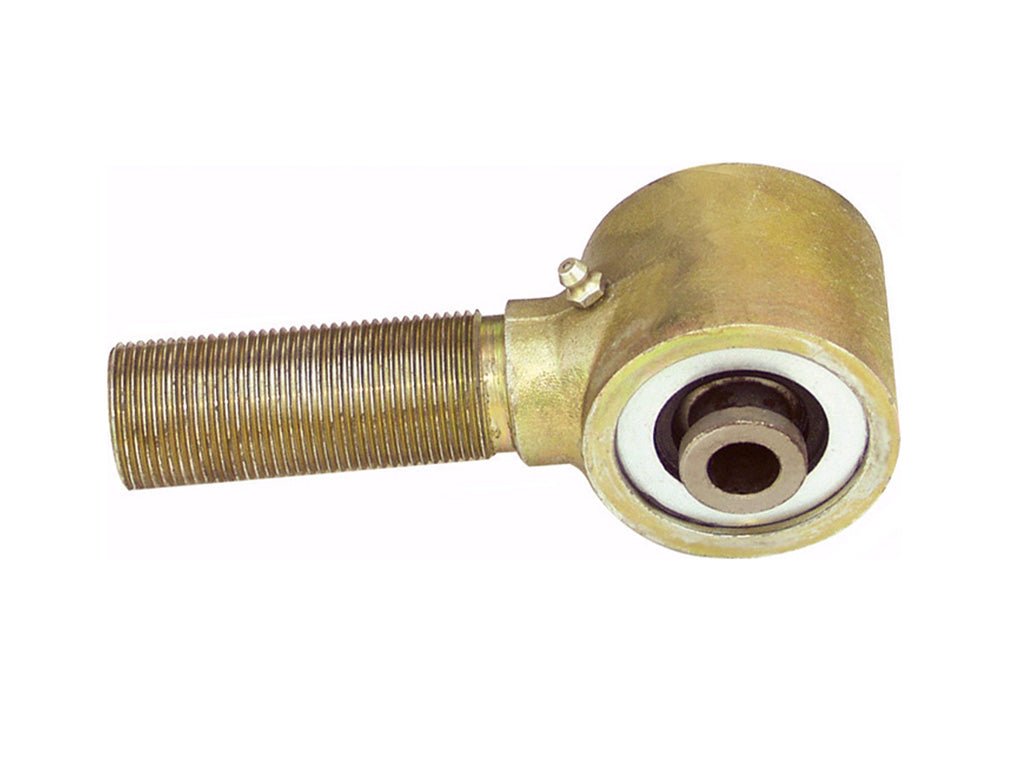

Forged Johnny Joint® rod ends feature forged steel construction, a 1-1/4"-12 left hand threaded shank and come fully assembled with our standard Johnny Joint® internals (2.365" wide ball center with a .5625" thru bolt hole). These units are externally greasable via a zerk fitting. Units will also accept our 9/16" greasable thru bolts as well (available seperately). Finished in gold zinc plating. We also keep the jam nuts for these units on hand at all times as well.
| Body Type | Forged Steel (Threaded) |
| Body Series | 2.5 inch OD, Standard Body |
| Body Width | 2 inches |
| Thread Size | 1 1/4 inch, 12 TPI |
| Thread Direction | Left Hand |
| Shank Length | 3 1/4 inch |
| Mount Width | 2.365 inches |
| Hole Diameter | .5625 inch (9/16, 14mm) |
| Misalignment | 23° Total |
| Lubrication Method | External zerk fitting located on joint body |
| Body Finish | Yellow zinc plating |
