Description
Priced Individually.

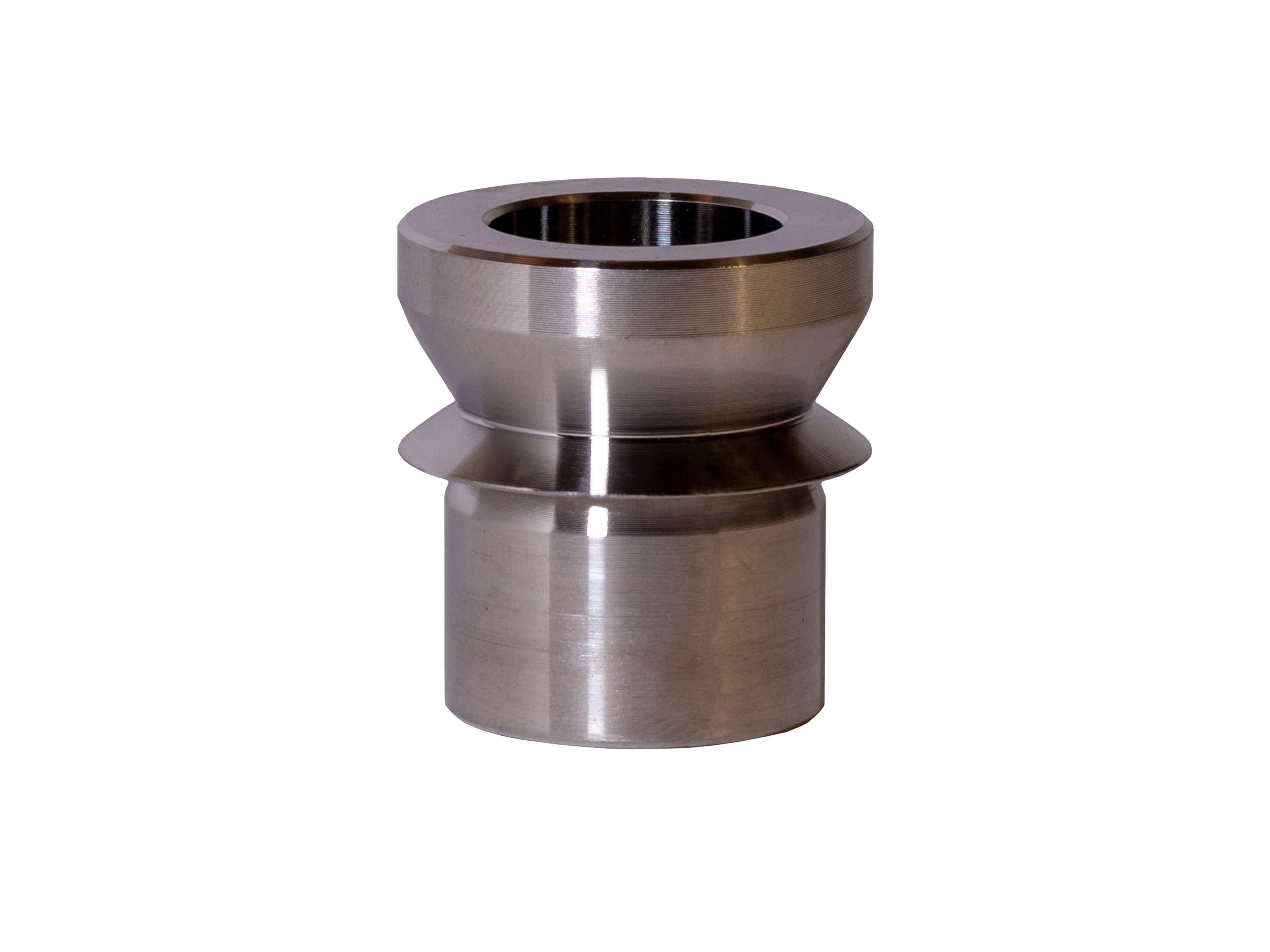

High Misalignment Series Spacers
Standard rod end spacers should only be used when the width of the ball is too narrow for an application. If more misalignment is required, high misalignment spacers should be used. They allow for more misalignment by continuing the spherical diameter of the ball and allowing the edge of the ball to rotate into the body.
| Description | Part Number | Bearing Size | Shoulder | Bolt Size | Stack Height |
|---|---|---|---|---|---|
| 5/8" OD x 1/2" ID | SG10-84 | 5/8" | 0.496" | 1/2" | 1.74" |
| 3/4" OD x 1/2" ID | SG12-84 | 3/4" | 0.4435" | 1/2" | 1.76" |
| 3/4" OD x 9/16" ID | SG12-916 | 3/4" | 0.4435" | 9/16" | 1.76" |
| 3/4" OD x 5/8" ID | SG12-108 | 3/4" | 0.4435" | 5/8" | 1.76" |
| 7/8" OD x 5/8" ID | SG14-1010 | 7/8" | 0.5585" | 5/8" | 1.99" |
| 7/8" OD x 3/4" ID | SG14-1014 | 7/8" | 0.562" | 3/4" | 1.995" |
| 1" OD x 9/16" ID | SG25-100 | 1" | 0.62" | 9/16" | 2.616" |
| 1" OD x 5/8" ID | SG16-1012 | 1" | 0.62" | 5/8" | 2.616" |
| 1" OD x 3/4" ID | SG34-100 | 1" | 0.62" | 3/4" | 2.616" |
