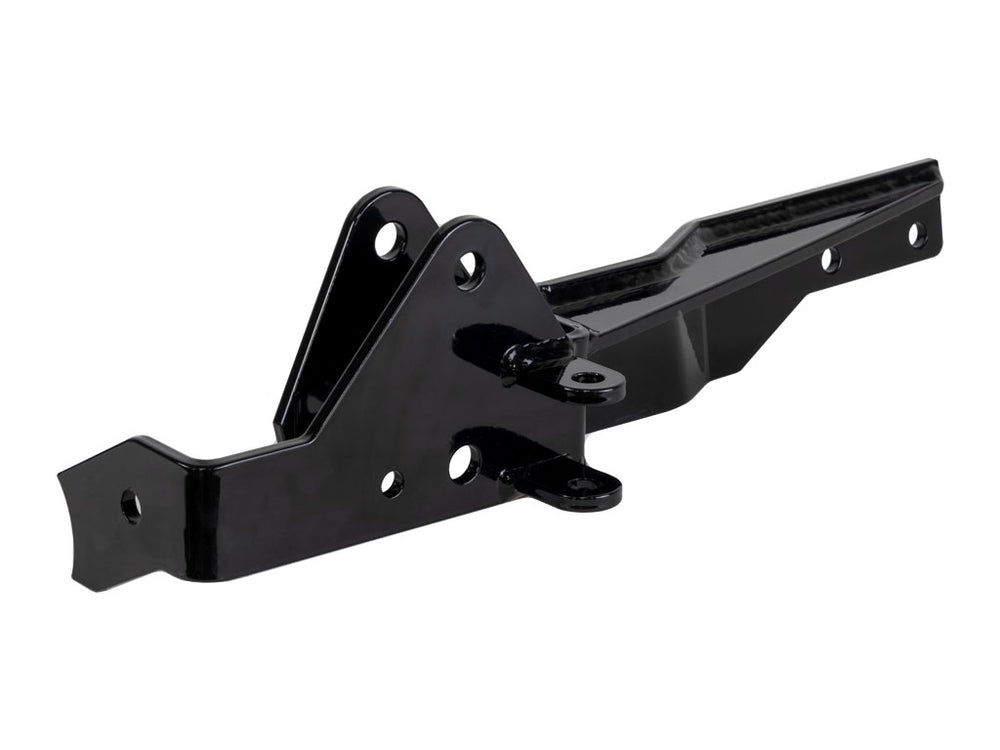

Rusty's Raised Front Track Bar Mount - JL Wrangler / JT Gladiator

Rusty's Raised Front Track Bar Mount - JL Wrangler / JT Gladiator

$169.00

In Stock

Brand: Rusty's Off Road Products

Part Number: RC-RAM899-JLJT

Free Shipping Badge

Free Shipping

Description

Rusty's raised Track Bar Mount for the JL Wrangler and JT Gladiator is designed for use with a drag link flip steering system. The bracket works with factory Dana 30 and Dana 44 front axles and bolts to the stock track bar mount on the axle. In addition to bolting into place. Constructed of 1/4" thick laser-cut steel, the bracket is then CNC formed for a precision fit. This bracket does require the use of an adjustable track bar and also is intended for use with a minimum 4.5 inches of lift. The bracket raises the track bar mounting location on the axle 3.25 inches.

KEY FEATURES:

Designed for use with drag link flipped steering systems
Constructed of 1/4" thick laser-cut steel
Mounts to and strengthens the factory JL/JT Dana 30 / 44 track bar mount
Raises track bar mounting point 3.25 inches
Requires use of an adjustable front track bar
Bracket bolts into place but does require welding
Mounting hardware is included
Made in the USA

We recommend a minimum of 4.5 inches of lift when using this bracket and also strongly recommend checking clearances prior to your first off-road trip. Front bump stop extensions may be necessary to ensure proper clearance. Also note that an adjustable front track bar is required, and that an existing adjustable track bar will need to be adjusted 5/8" shorter than its length in the factory mounting location. If there is less than 5/8" of adjustment available, a shorter track bar will be required.

Passenger side lower mount must be modified for the use of most quick disconnects. Extended links fit properly.

Click to download installation instructions
