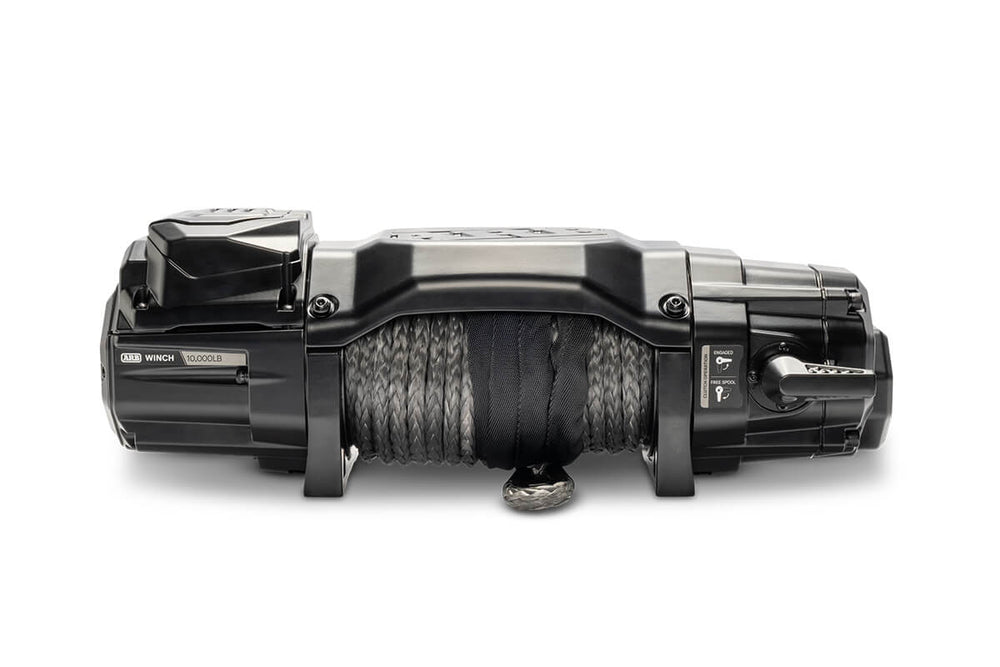

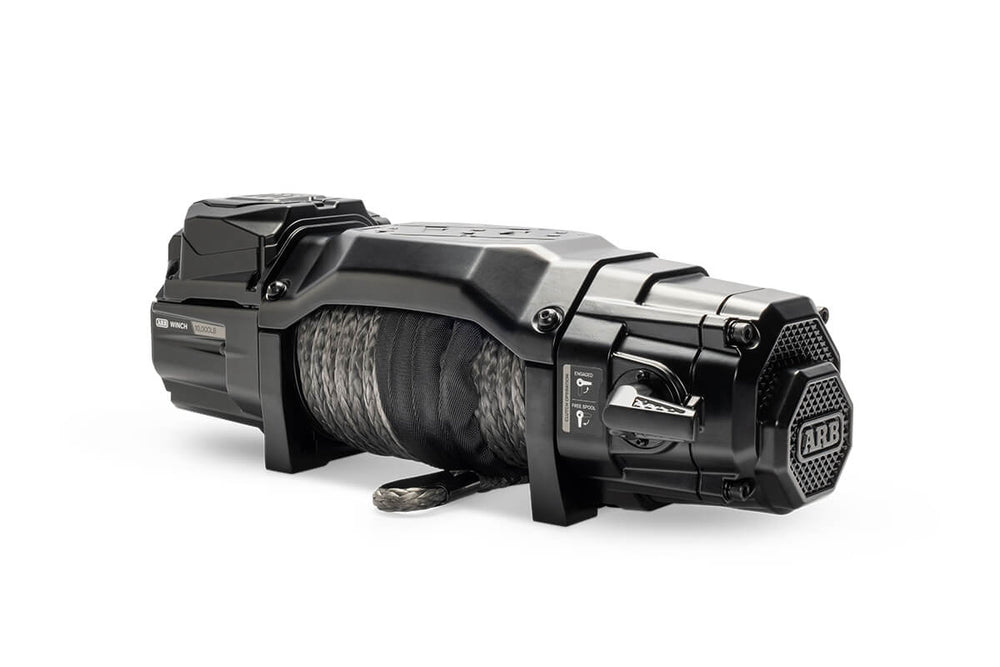

ARB 10,000 LB Synthetic Rope Winch

Compact power, modern control, and proven reliability for serious recovery

If you're building a Jeep or truck that actually sees the trail, a winch isn’t optional. It’s part of the plan. The new ARB 10K Winch brings modern design and dependable pulling power together in a compact package that fits today’s vehicles and bumpers.

This next-generation winch features a fully integrated motor control unit, eliminating the need for a bulky external control box while improving efficiency and simplifying installation. With a direct connection Albright contactor and a purpose-built 12V motor, you get smooth, consistent power when it matters most.

Designed and tested for real-world recovery, this winch delivers fast line speed, strong load holding, and long-term durability in harsh off-road environments.

Key Features

• 10,000 lb rated line pull for Jeeps, trucks, and overland builds
• Integrated motor control unit for clean, compact installation
• Albright 500A contactor with direct motor connection
• Wireless and wired remote with 40m range
• IP68 waterproof rating for motor and gearbox
• 4-stage hardened steel gearbox for strength and durability
• Gearbox-mounted brake with 100% load holding capability
• 16-position clockable clutch handle for flexible mounting
• 500A power isolation switch included

Built for Real Recovery

The 4-stage gearbox and series-wound motor are tuned for fast line speed with efficient current draw, helping reduce heat and maintain consistent pulling performance. The zero-drag braking system protects your synthetic line and allows controlled operation without unnecessary wear.

Whether you're navigating rocks, mud, or remote backcountry terrain, this winch is built to perform when recovery isn’t optional.

Specifications

• Rated Line Pull: 10,000 lbs (4,536 kg)
• Rope: 10mm x 92 ft synthetic
• Fairlead: Forged 6061 aluminum hawse
• Motor: 5.3 HP
• Gear Ratio: 171:1 (planetary + spur)
• Max Line Speed: 60 ft/min
• Weight: 73.5 lbs
• Waterproof Rating: IP68

What’s Included

• Wireless + wired remote controller
• 500A power isolation switch with mounting hardware
• Remote-mounted control plug for hidden installs

Warranty

• Limited Lifetime Mechanical Warranty
• 7-Year Electrical Warranty

When you need to get unstuck, this is the kind of gear you trust to get you home.
